Flexible ModularShowcase System
COMBO is our new modular museum showcase system, designed for elegant single or multi-module display arrangements. Its clean aesthetic is paired with high conservation performance, including passive climate control and a very low air exchange rate. Each module can be fitted with optional lighting and shelving to suit the object and curatorial concept perfectly. Flexible, robust and easy to handle, COMBO offers museums and heritage a sophisticated and scalable display solution.
COMBO Modular Display Case Specifications
Module dimension: 90 x 90 x 210 cm
Glass parameters: Laminated safety glass 55.4 (11.5 mm)
(Composition with 4 x PVB interlayers: 5 mm glass / 1.52 mm PVB / 5 mm glass)
Standard:
- Hinged door
- Air exchange rate: 0.1 AER
- Passive humidity control (ProSorb or equivalent not included)
- 2x Abloy-type security locks
- Transportable by pallet jack
Options:
- Lighting (top and/or bottom or lateral)
- Shelves
- P6B security glass

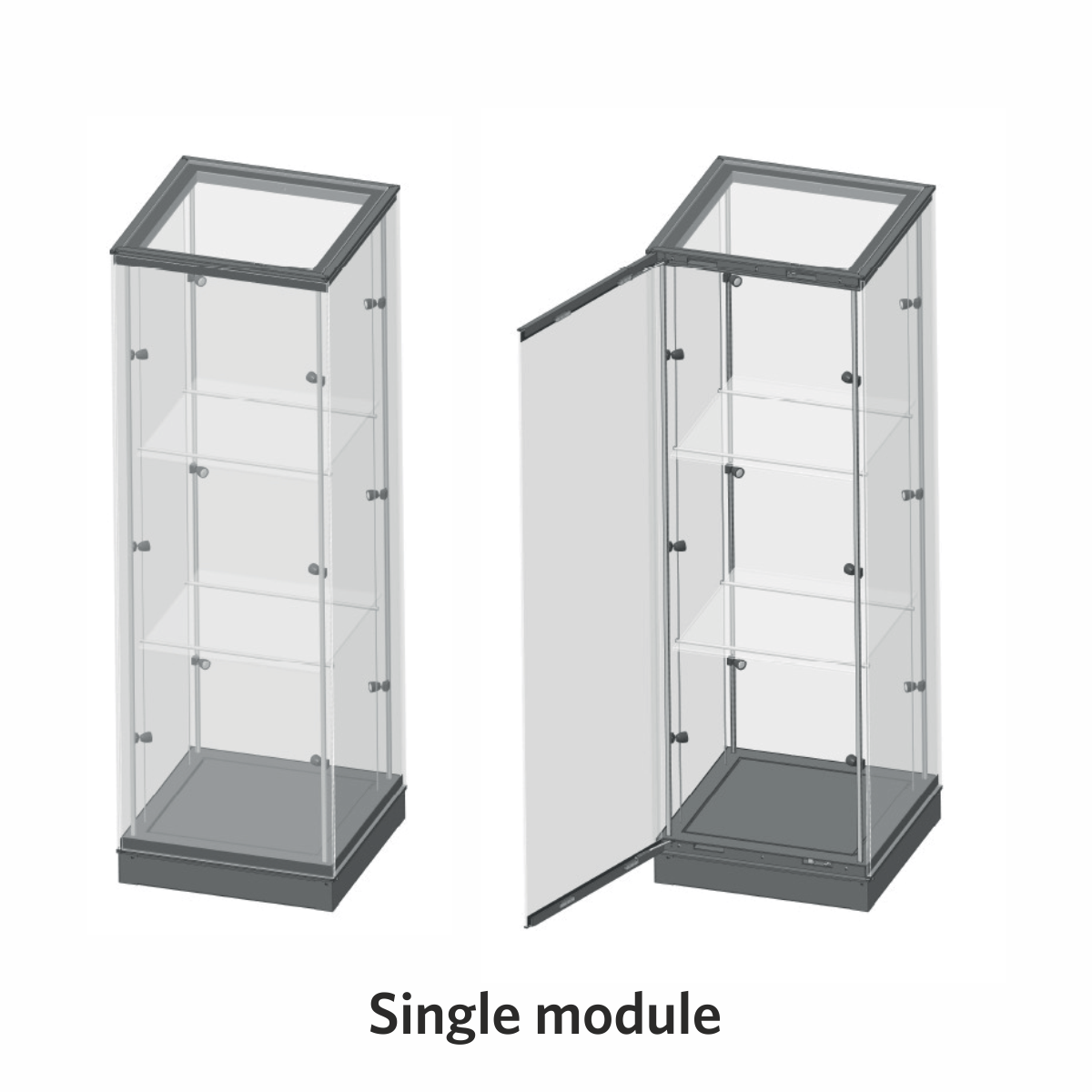

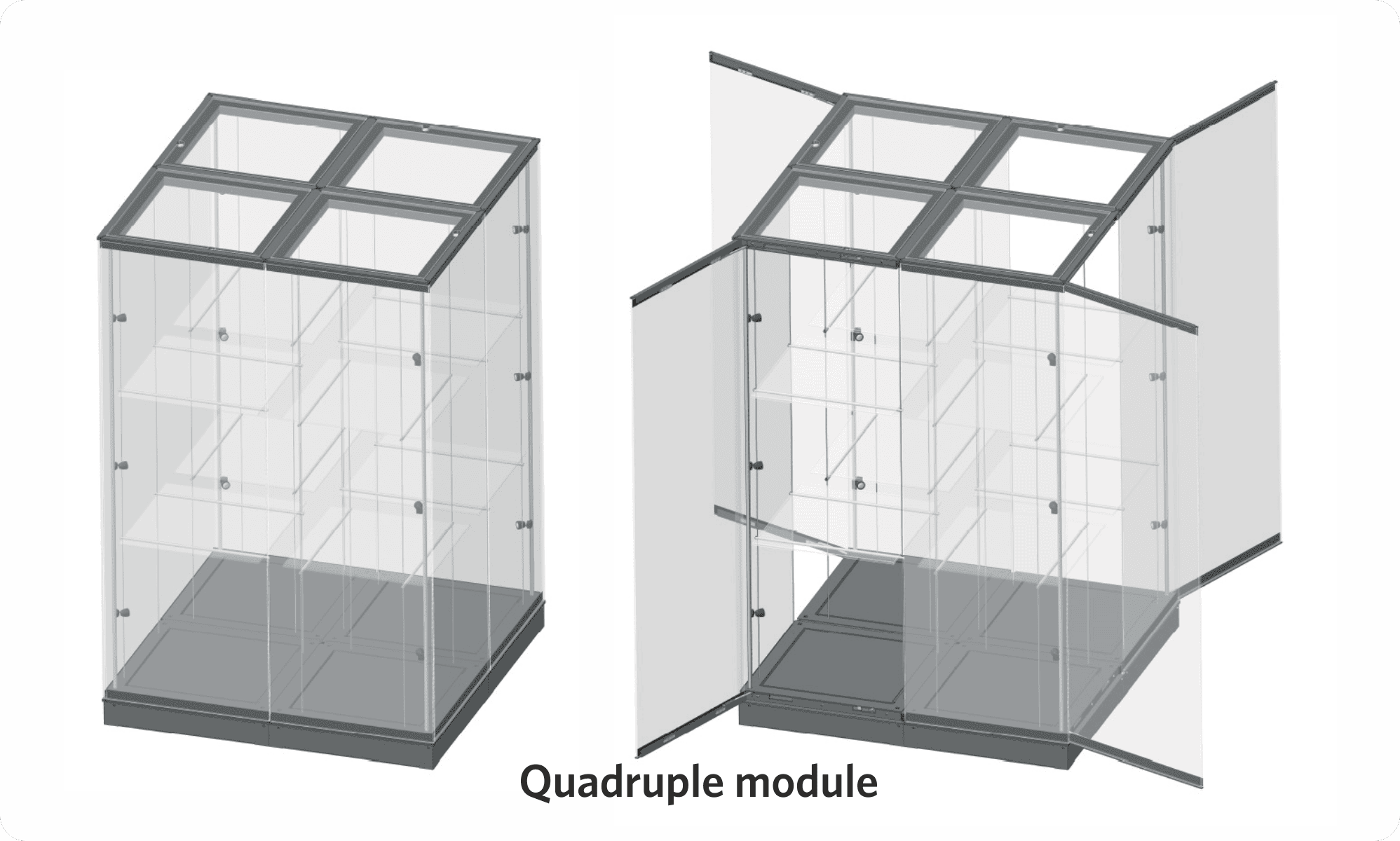

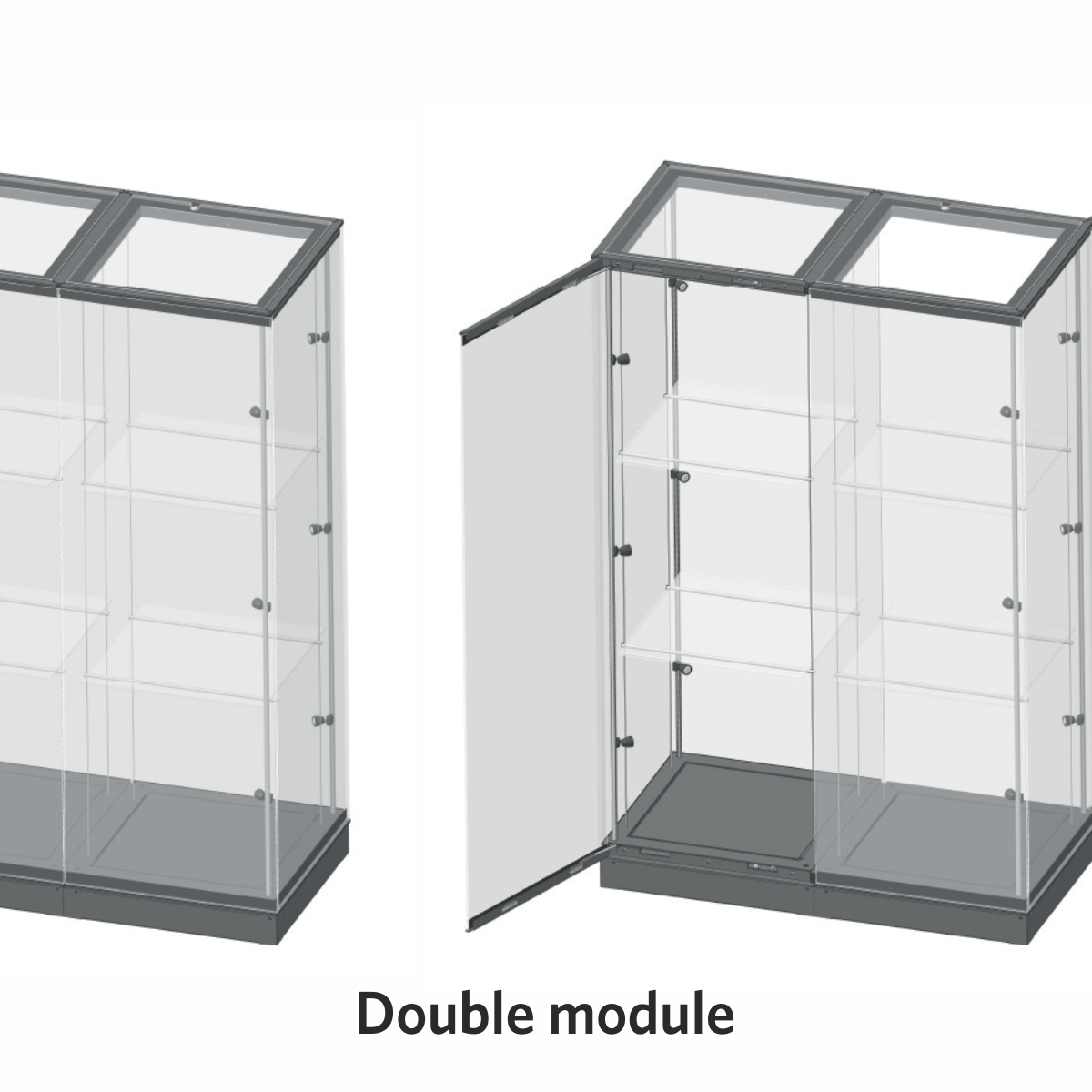

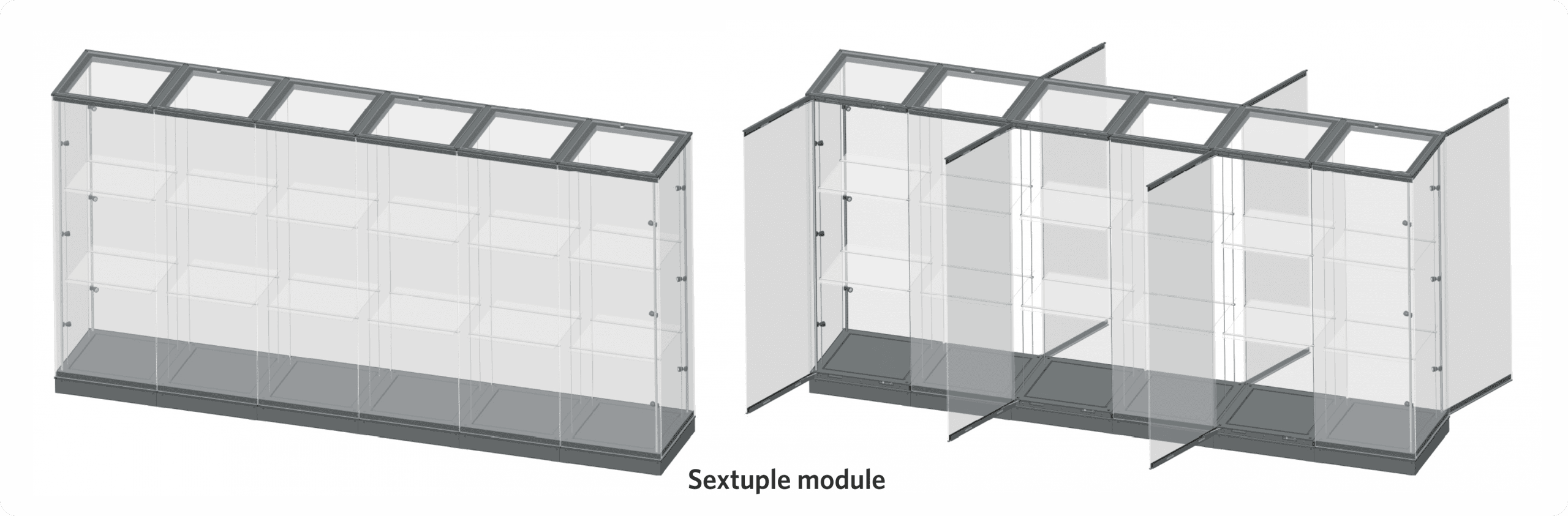

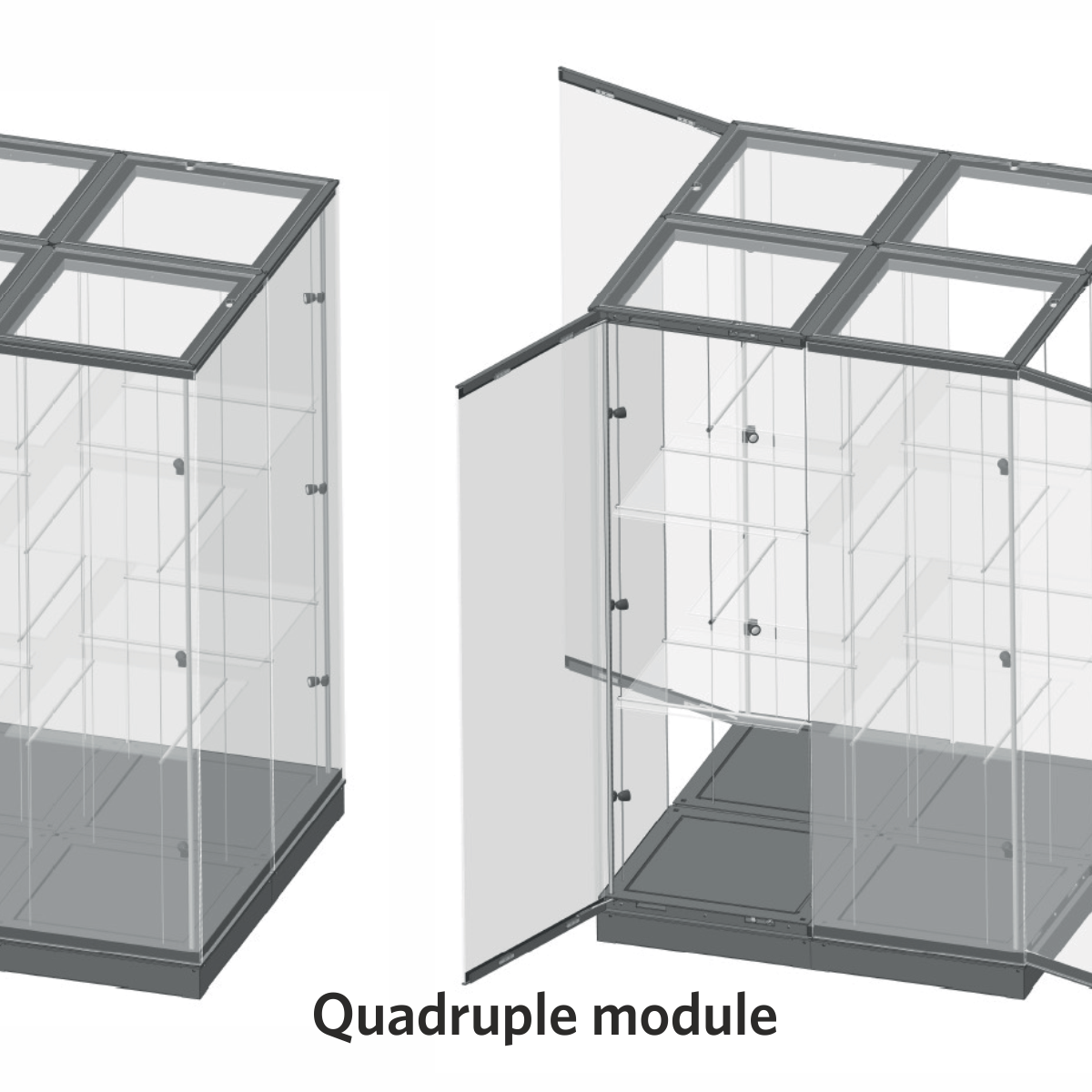

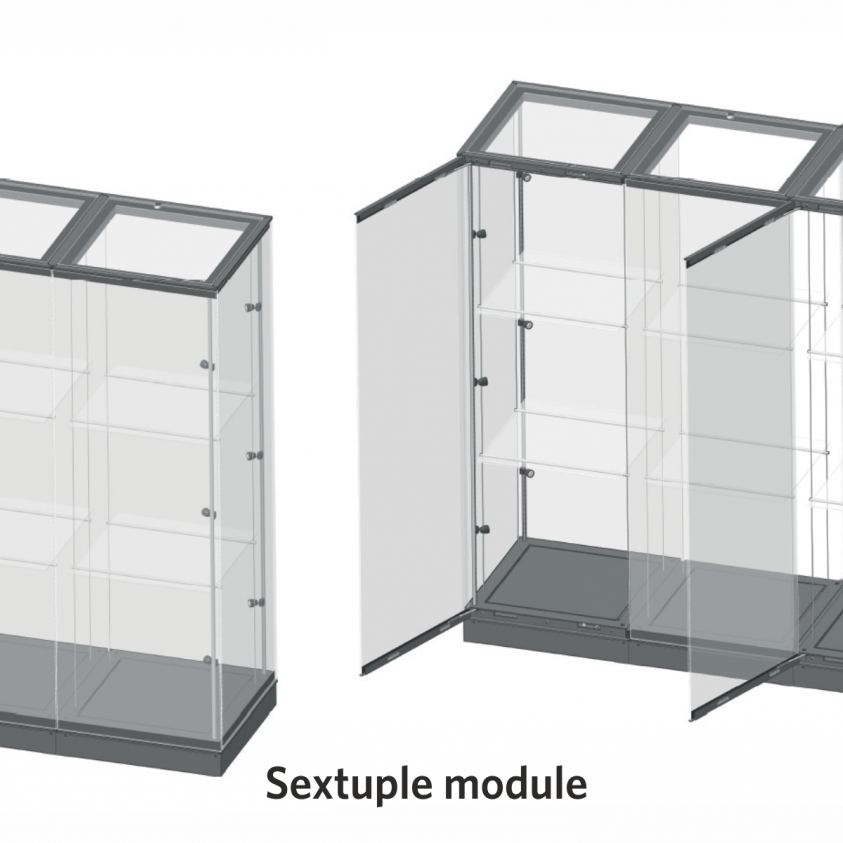

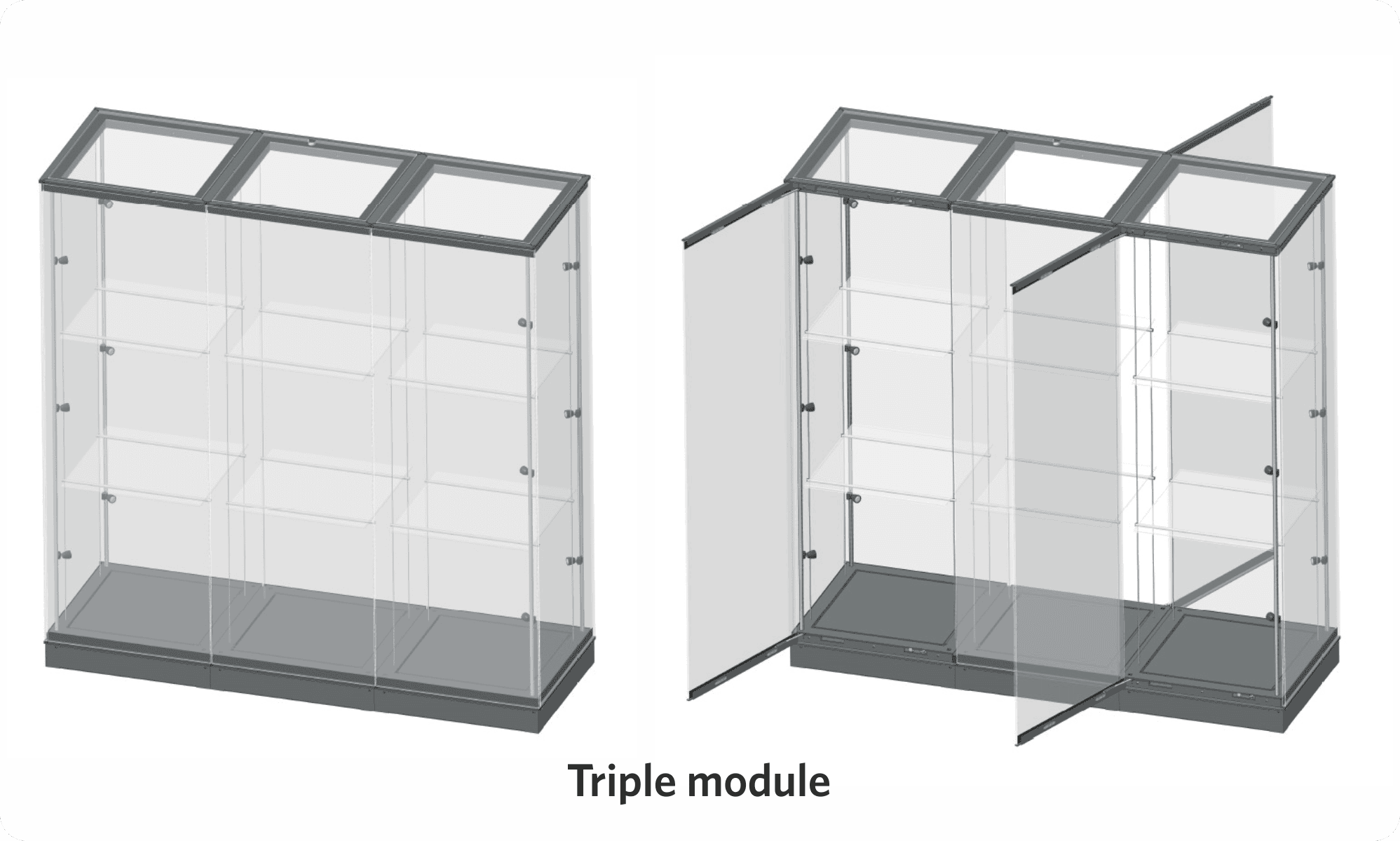

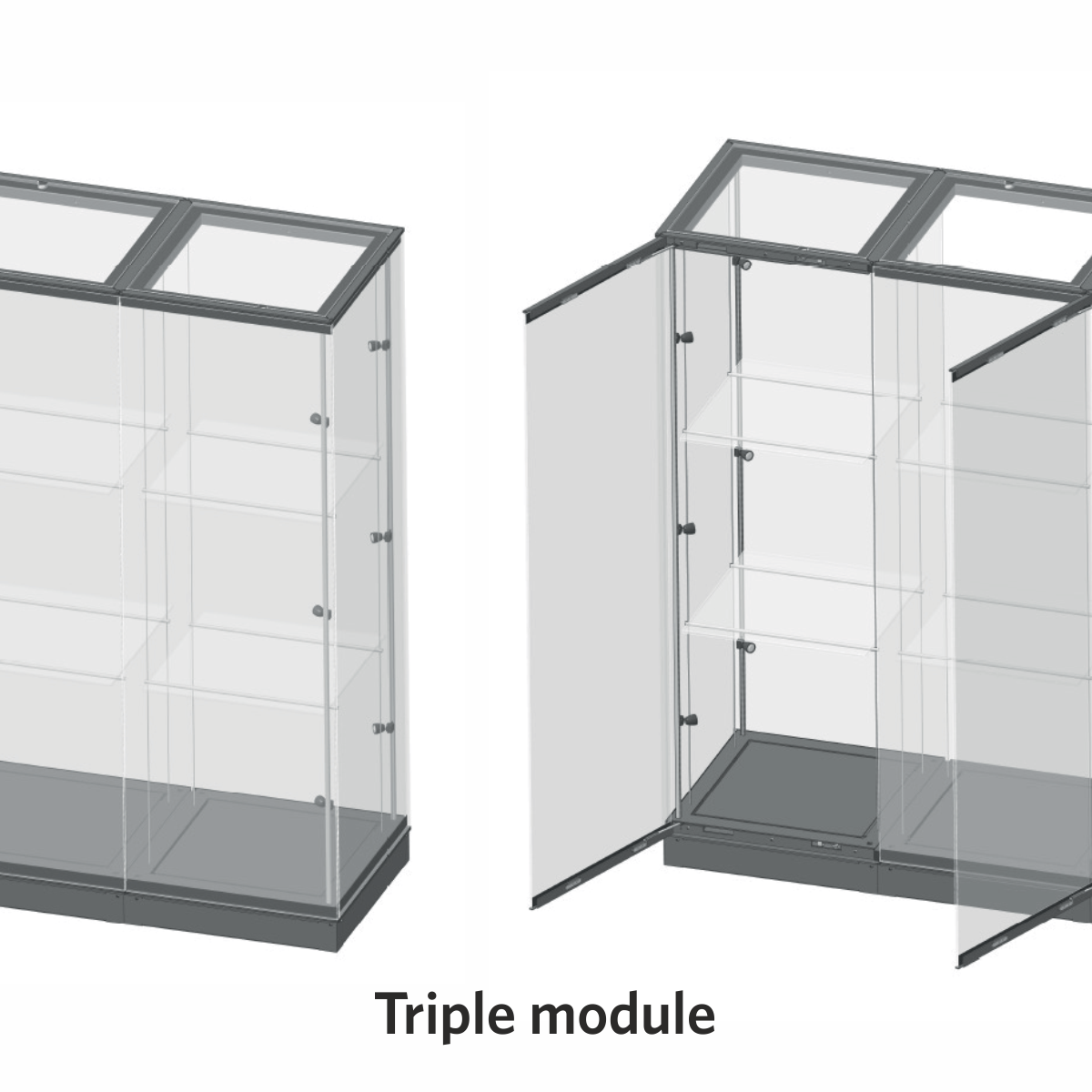

Examples of Module Configuration
The modular showcase allows for construction of complex showcases in various shapes, composed of multiple modules. Each module can be independently equipped with internal lighting and shelving.
Much more module configurations possible…

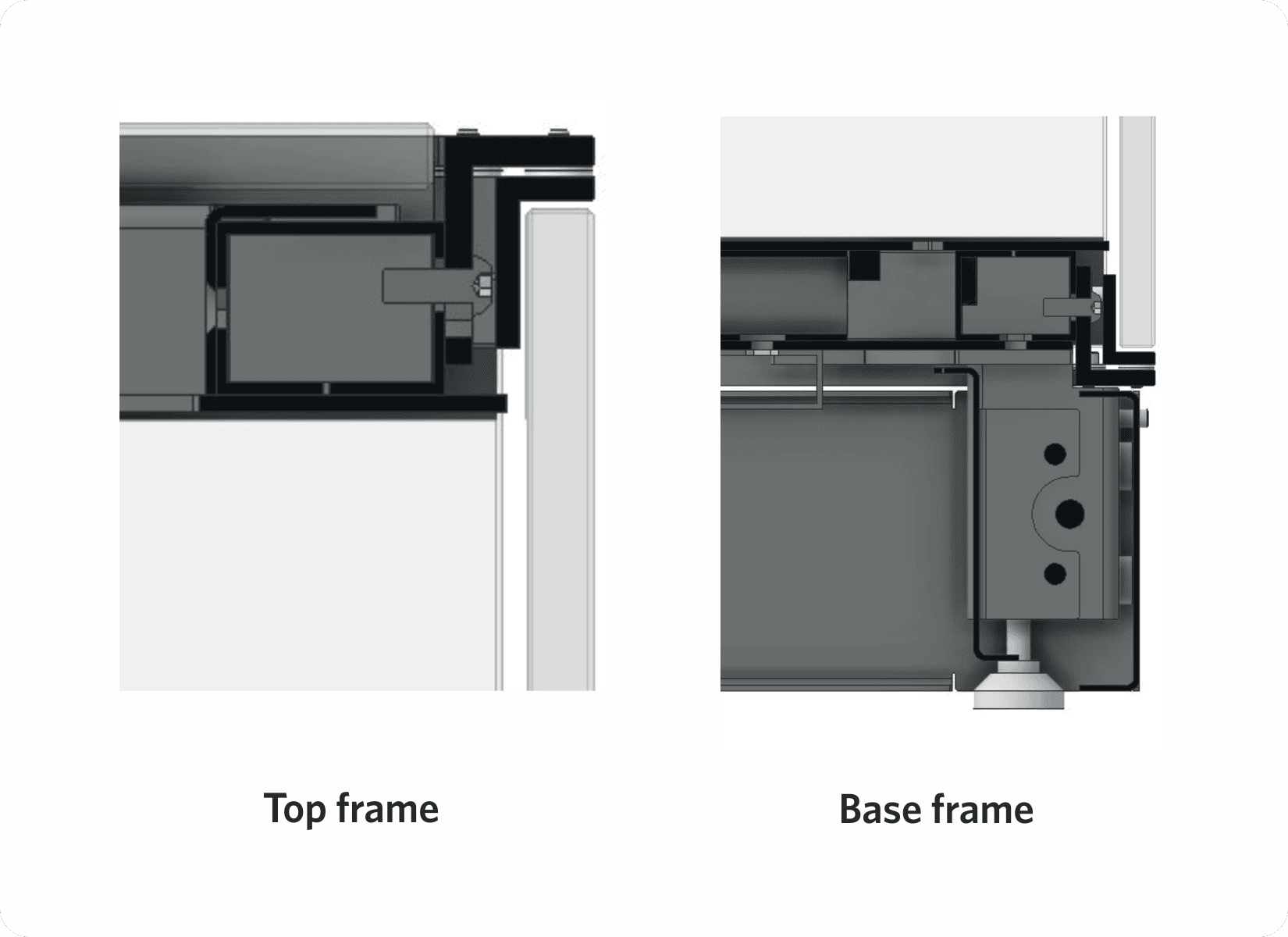

Specification of the frame
Aluminum and steel custom-made profiles, cut using a CNC laser machine, are assembled into a single unit and equipped with an Abloy security lock. All metal elements are powder-coated in the requested RAL colour.

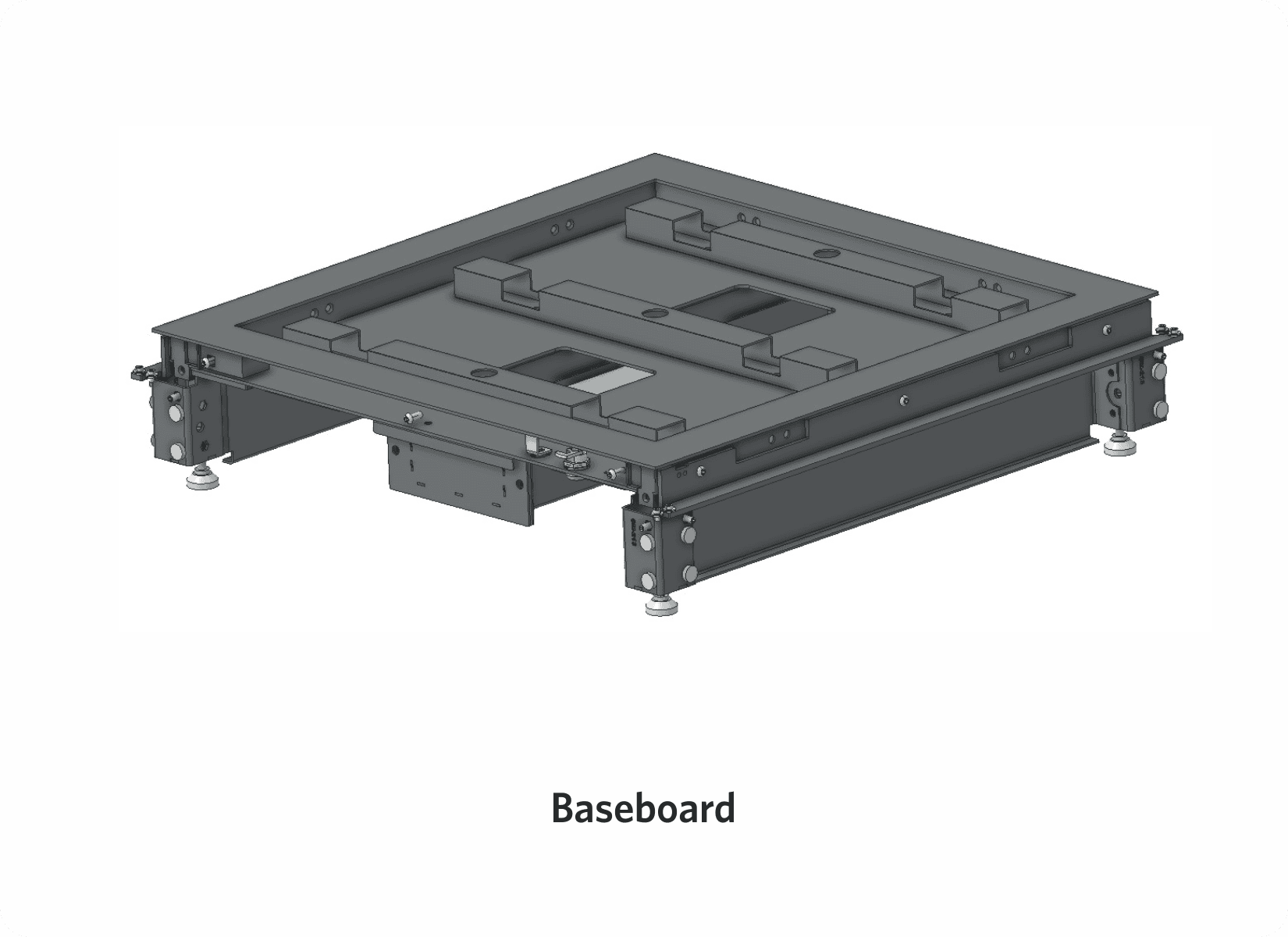

Specification of baseboard
Single-segment element made of metal/aluminum structural profiles, powder-coated in requested RAL color.

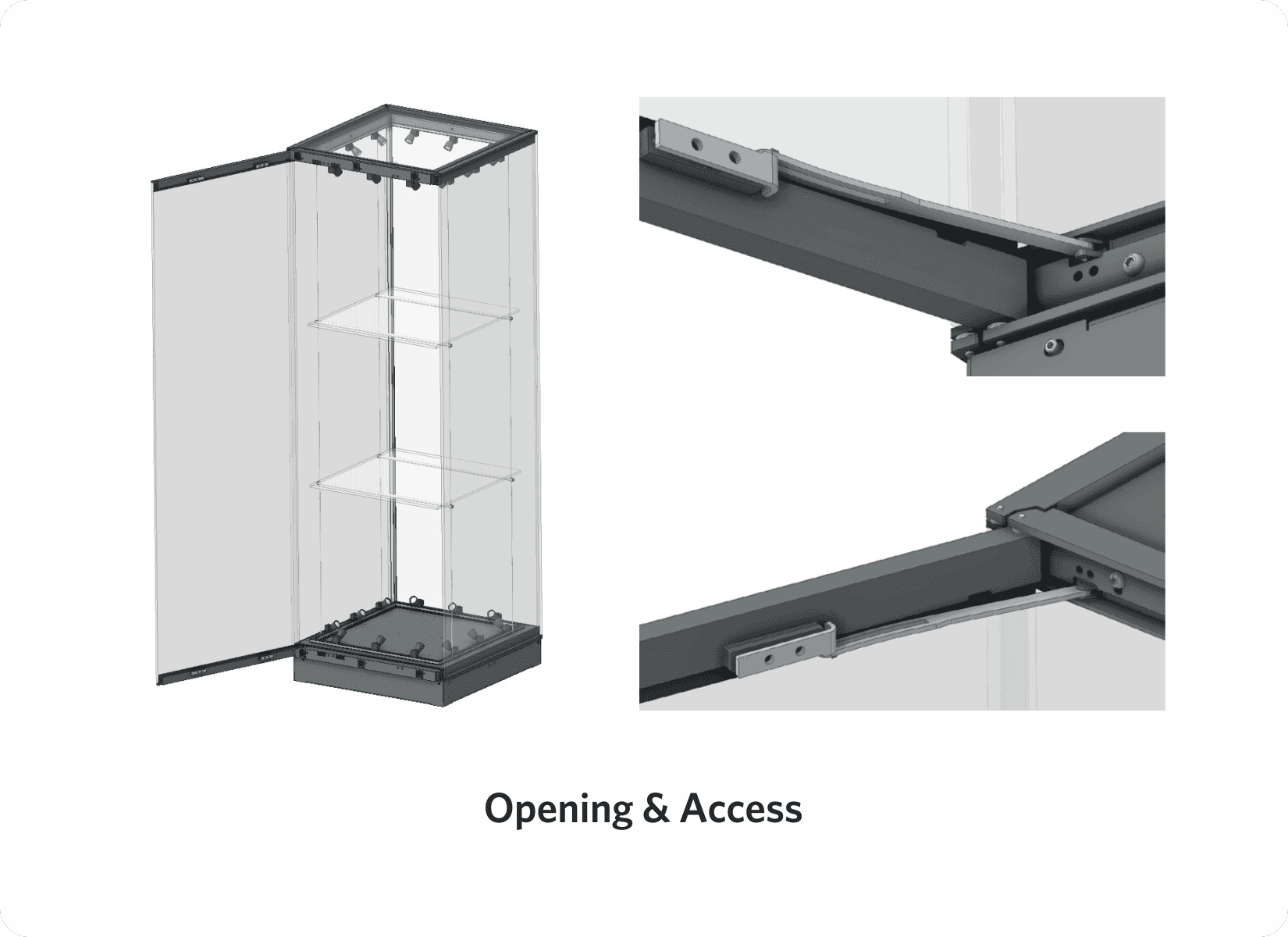

Opening & Access
Hinged door, French-style opening, with opening restrictor. Opening angle of 110°. Left- or right-hand opening available on request.

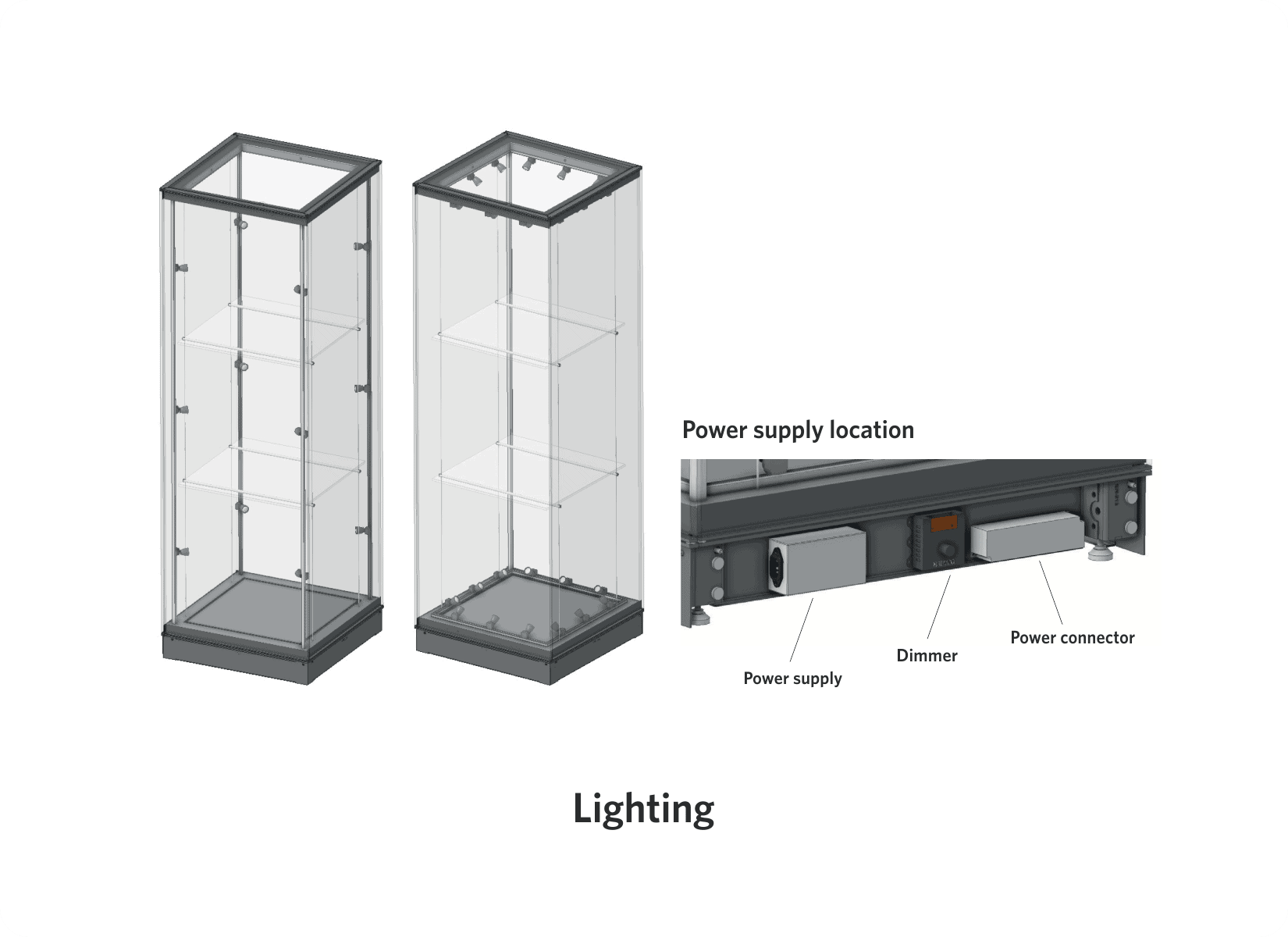

Lighting
Each independent module features a manual dimmer and a base-integrated electrical compartment, accessible via a removable plinth without opening the door.

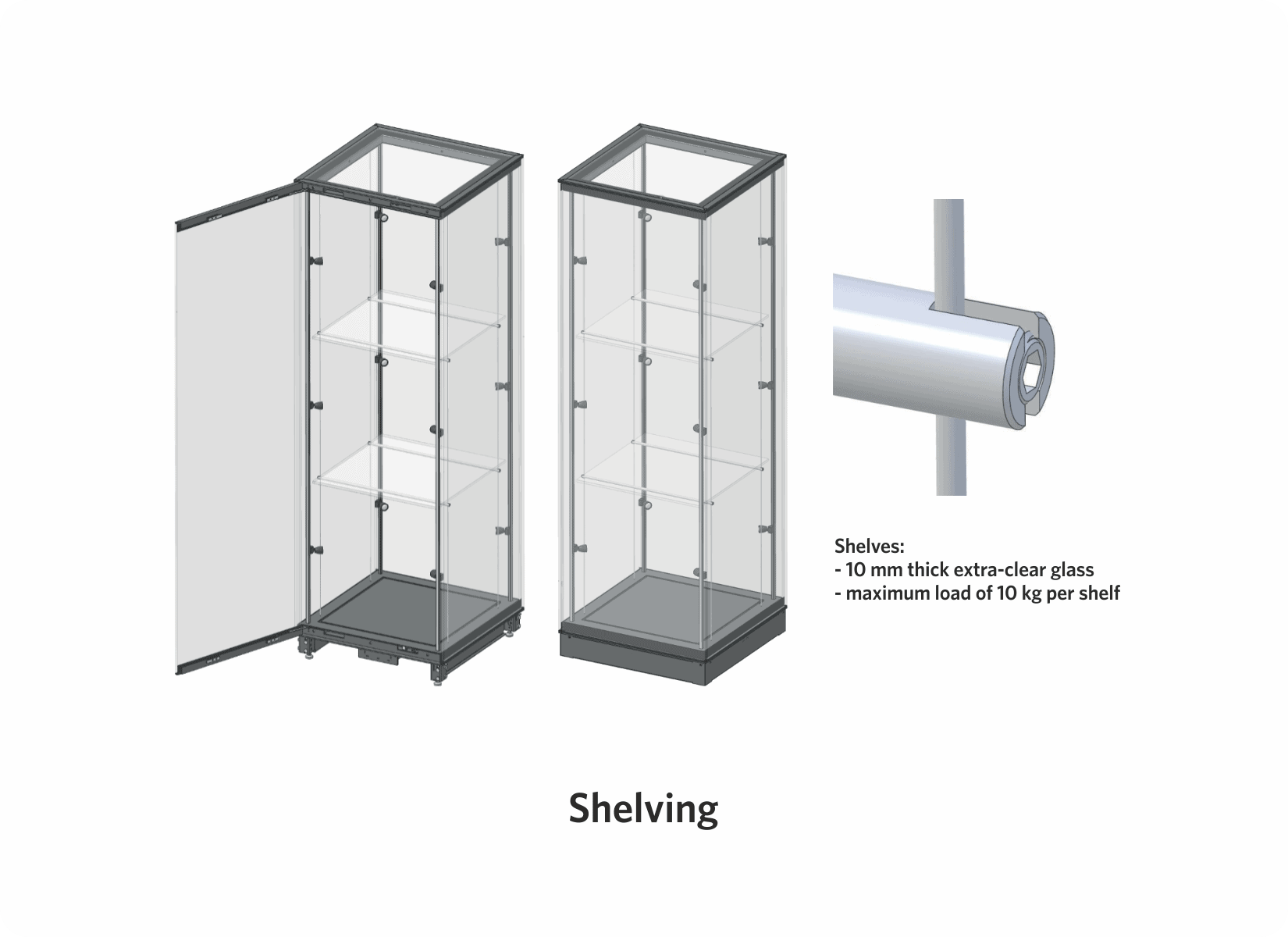

Shelving
The shelving units can be fitted with two glass shelves as an option. The system consists of taut stainless steel cables fitted with clamps to prevent any sideways swaying.

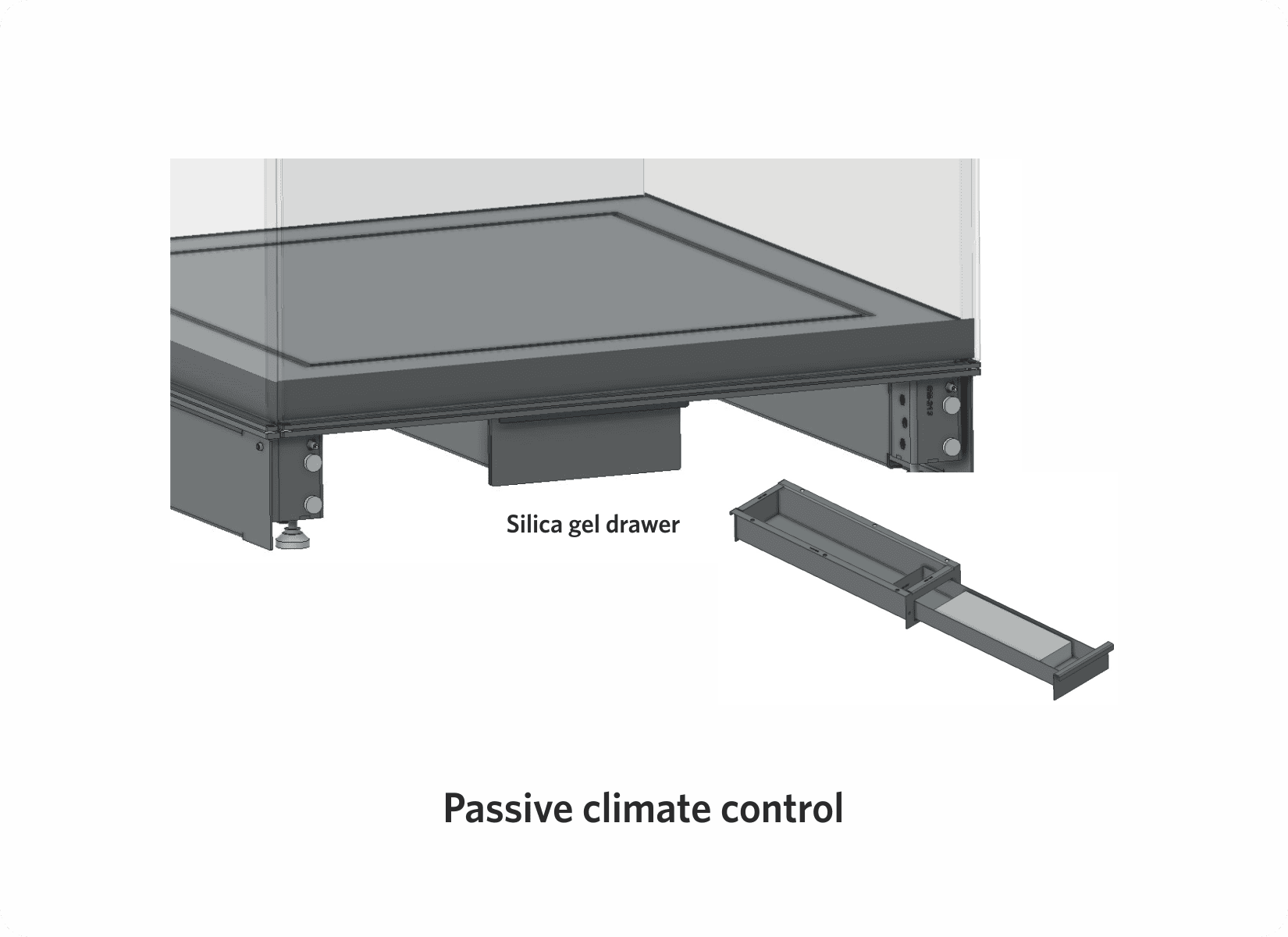

Climate control
Passive humidity control via desiccant unit (capacity: 2 Prosorb® cassettes) housed in a separate base drawer with independent access through a removable panel (AER: 0.1/day).
